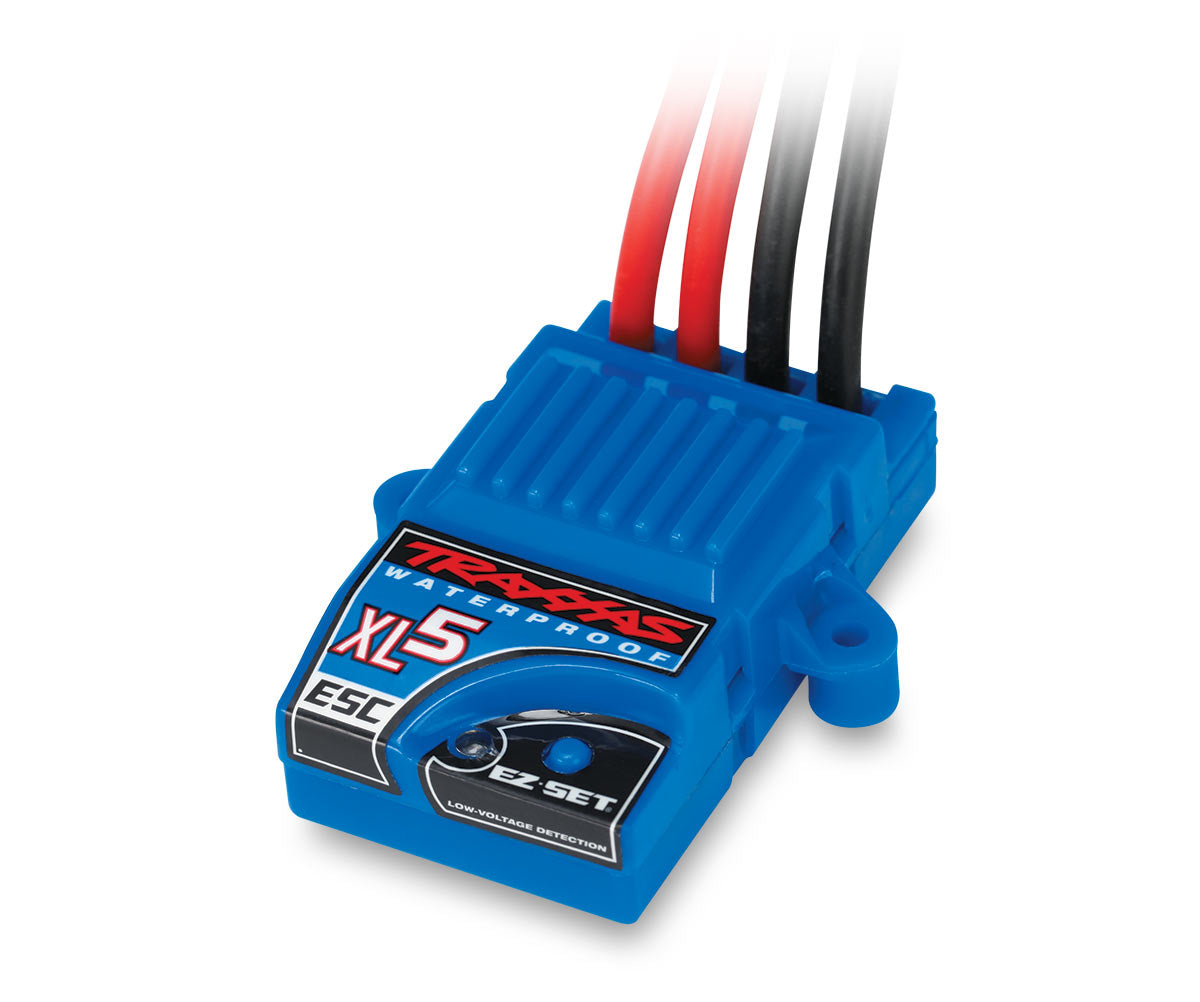

XL-5™ Waterproof FWD/REV ESC
with Low Voltage Detection (LVD)
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-7 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. XL-5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-5 is backed by the Traxxas Lifetime Electronics Warranty.
Traxxas High-Current Connector*
The XL-5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.
Click here for more info about the patented Traxxas High-Current Connertor.
Patented Training Mode™
An exclusive feature that places the XL-5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!
XL-5 LVD Waterproof ESC Features
- Built-in two-stage low voltage detection (LVD)
for Lithium Polymer (LiPo) battery use
- Innovative watersealed design
- 15-turn motor limit for 540 size motors
- 12-turn motor limit for 550 size motors
- Fully-proportional forward, reverse, and braking control
- Programmable with three drive profiles:
- Sport Mode – Fwd / Brake / Rev
- Race Mode – Fwd / Brake
- Training Mode* – 50% Fwd / Brake / 50% Rev
- EZ-Set® push-button setup
- Multi-color LED
- Thermal shutdown protection
- Efficient, low-loss MOSFET design
- Smooth, high-frequency operation
- Easy installation in Traxxas models
- Backed by the Traxxas Lifetime Electronics warranty
|XL-5 LVD WATERPROOF ESC SPECIFICATIONS|
MODEL 3018R: XL-5 Waterproof Electronic Speed Control
(Land Version, Low-Voltage Detection, FWD/REV/Brake).
