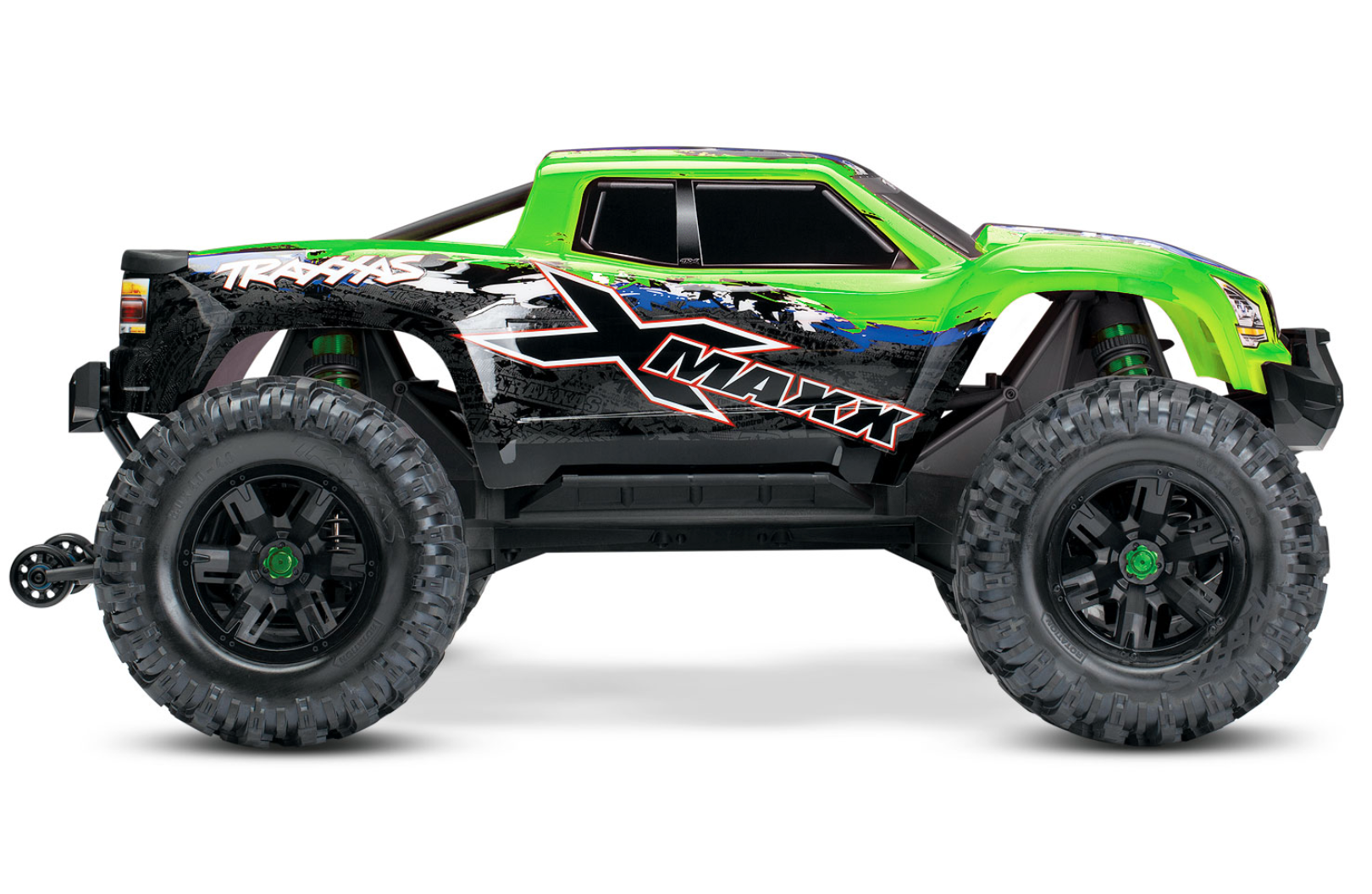

Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8S power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+mph speeds. Engineered to conquer the most extreme terrain and take brutal real-world punishment in stride, X-Maxx is the definition of Traxxas Tough®.
Traxxas Part Number: 77086-4
Batteries and Charger sold separately.

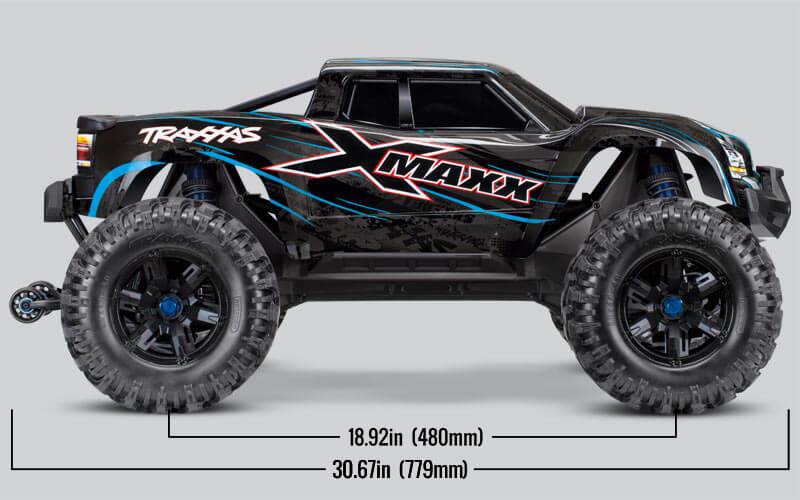

Length:
30.67 inches (779mm)
Front Track:
22.26 inches (540mm)
Rear Track:
20.66 inches (525mm)
Ground Clearance:
4 inches (102mm)
Weight:
19.1lbs (8.66kg)

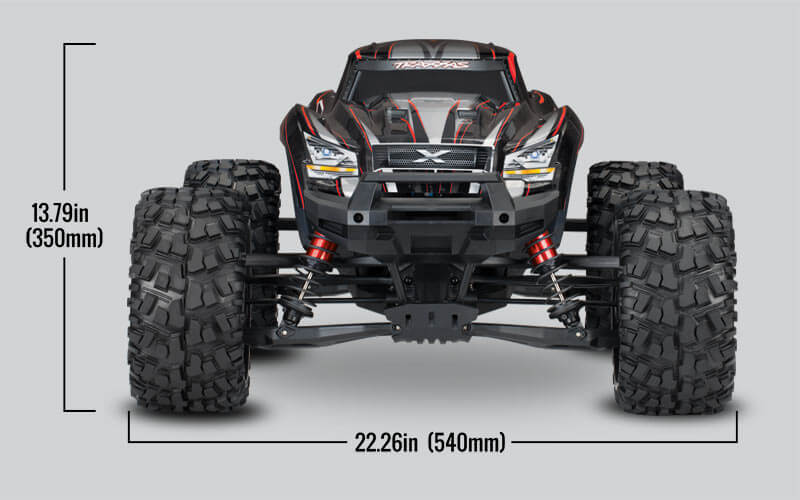

Height (ride):
13.79 inches (350mm)
Wheelbase:
18.92 inches (480mm)
Shock Length:
7.4 inches (187mm)
Tires (pre-glued):
8.0x4.0 inches (203mm)
Wheels:
4.3x5.7 inches (110x145mm)
Speed Control:
Velineon VXL-8s
Motor (electric):
Velineon 1200XL
Transmission:
Single-Speed
Overall Drive Ratio:
8.11 (stock, out-of-box)
Differential Type:
Sealed, Hardened Steel Bevel, Limited Slip
Gear Pitch:
1.0-Pitch

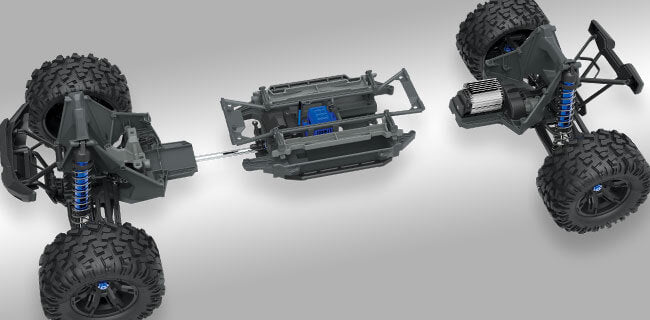

Chassis Structure/Material:
Composite Nylon Tub
Brake Type:
Electronic
Drive System:
Shaft-Driven 4WD
Steering:
Bellcrank
Radio System:
TQi™ 2.4GHz Transmitter with TSM® receiver™
Servo:
Torque: 365oz. Speed: 0.17 sec/ 60 degrees(6.0V)
Top Speed:
50+ MPH with two 4s LiPo batteries and optional pinion gear
